Amplifier Description

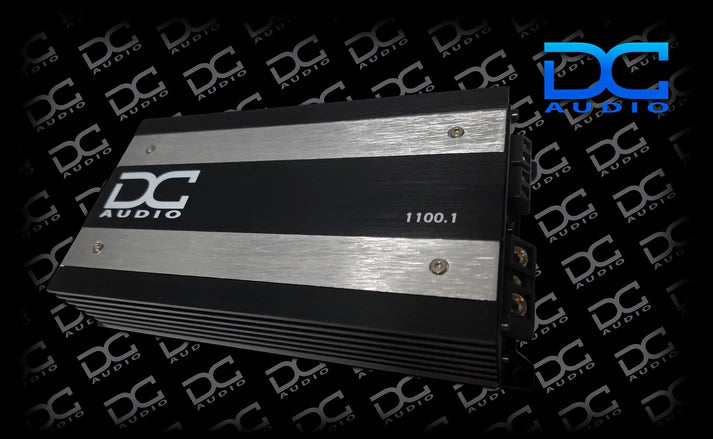

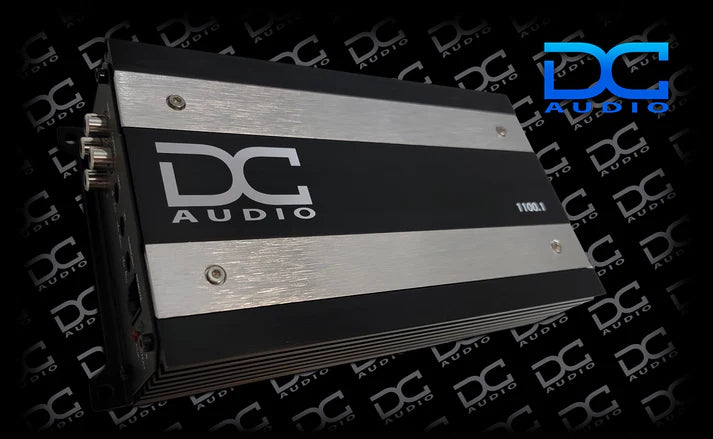

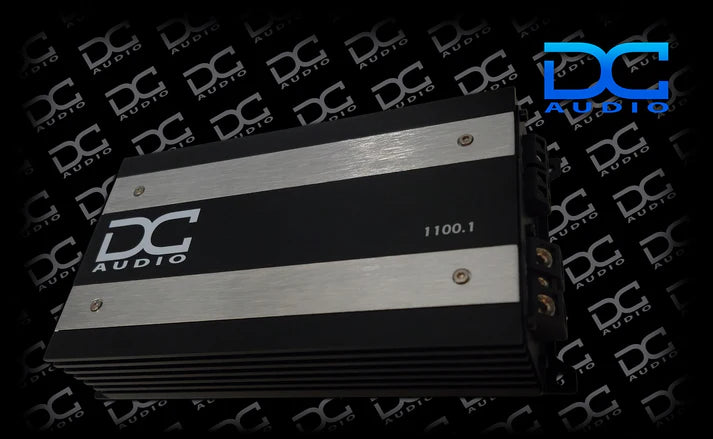

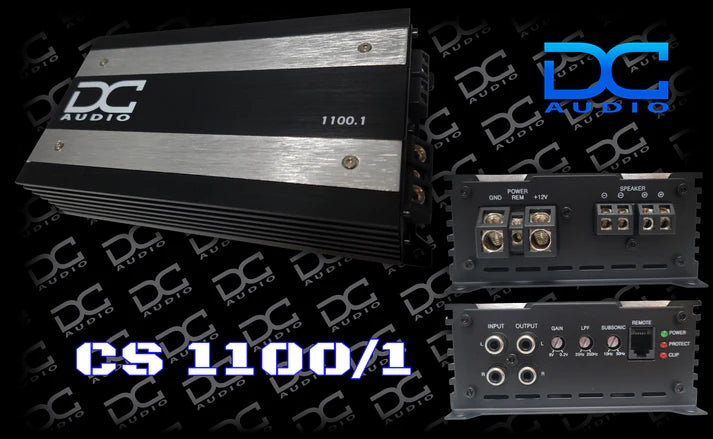

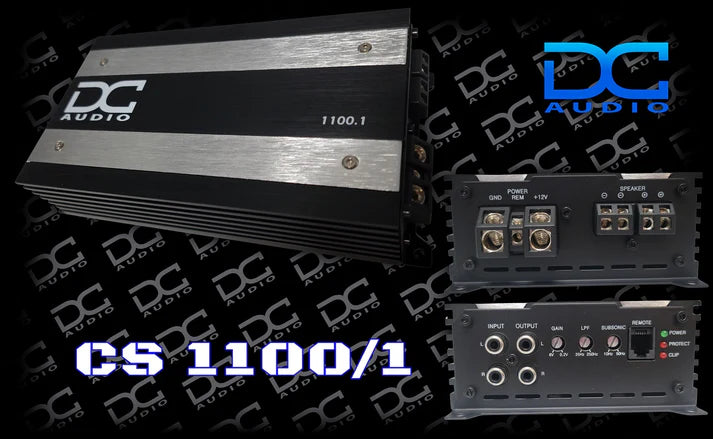

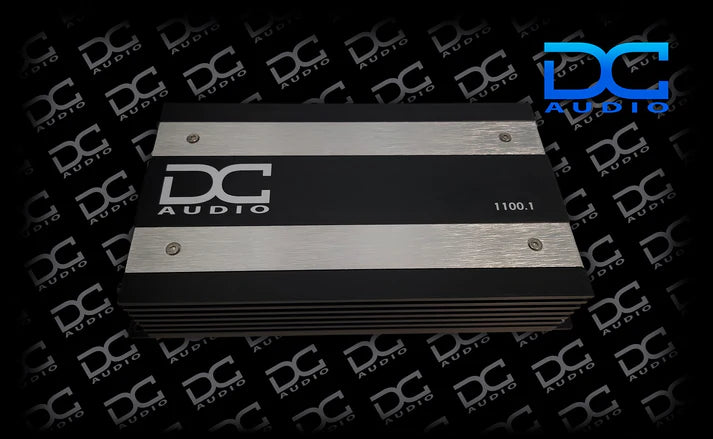

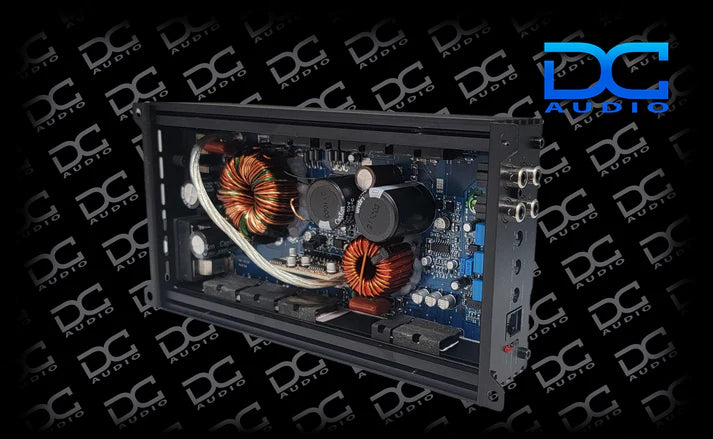

The DC-CS1000.1 is a compact series amplifier capable of making 1,100 watts. Its High power mono block. It has 4awg inputs and onboard clipping lights. It also comes with a bass knob and a clipping indicator. Designed to make more power in less space.
Output Power (RMS)
4 ohm 500Wx1 @ 14.4 Volts
2 ohm 800Wx1 @ 14.4 Volts
1 ohm mono 1100x1 @ 14.4 Volts
1 ohm mono 1400x1 @ 16.0 Volts
Key Features
• 1 ohm stable
• Variable low pass filter
• Variable subsonic filter

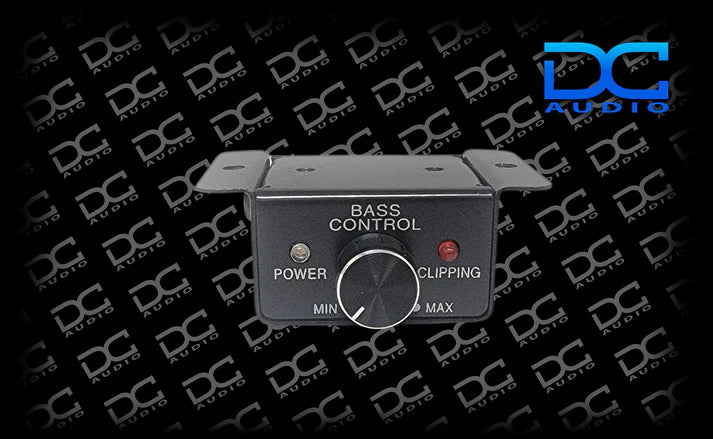

• Wired Bass Knob remote control W/ Clip light
• RCA Pass Thru
• Onboard clip light
Full Specs:
| DC Amp Model: |
DC-CS1100x1
|
| Input Sensitivity |
6V~0.2V |
| Frequency Response |
10Hz~250Hz |
| 24dB / Octave Crossover |
YES |
| Low Pass |
35Hz ~ 250Hz |
Subsonic Filter
|
10Hz ~ 50Hz |
| Crossover Selector Switch |
None
|
| Remote Control |
Yes
|
| Signal to Noise Ratio |
dB92 |
| Damping Factor |
150< |
| THD @ 4ohms |
Less than 0.1% |
| Fuse Rating |
External 100 amp |
| LED Status Lights |
Power / Protect / Clip |
| Heatsink Length |
8.27"/210mm |
| Heatsink Width |
4.72"/120mm |
| Heatsink Height |
1.96"/50.0mm |
